How To Install Liveview Video Mirror Kit for Chevrolet Camaro

To install a Liveview Video Mirror Kit for a Cadillac, you typically follow a series of steps that involve wiring the system to your car’s electronics and setting up the video and mirror functions. Please note that the exact procedure may vary depending on the specific model of the kit you have, but here’s a general guide to help you through the installation process:

Tools and Equipment Needed

• Liveview Video Mirror Kit (includes video mirror and necessary hardware)
• Screwdrivers (Phillips and flathead)
• Wrench or socket set
• Electrical tape
• Wire connectors
• Plastic trim removal tools
• Pliers
• Drill (if necessary for mounting)

Installation Steps

1. Preparation:

   • Disconnect the vehicle’s battery to avoid any electrical issues during installation.
   • Make sure you have the kit’s installation manual handy, as some kits may require model-specific instructions.

2. Remove the Rearview Mirror:

   • Use the plastic trim removal tool to carefully detach the cover around the rearview mirror.
   • Unbolt or unscrew the existing rearview mirror from the mount on the windshield. You might need to remove screws or bolts depending on the mirror style.
   • Disconnect any wiring (if your current mirror has electrical connections, such as for auto-dimming or other features).

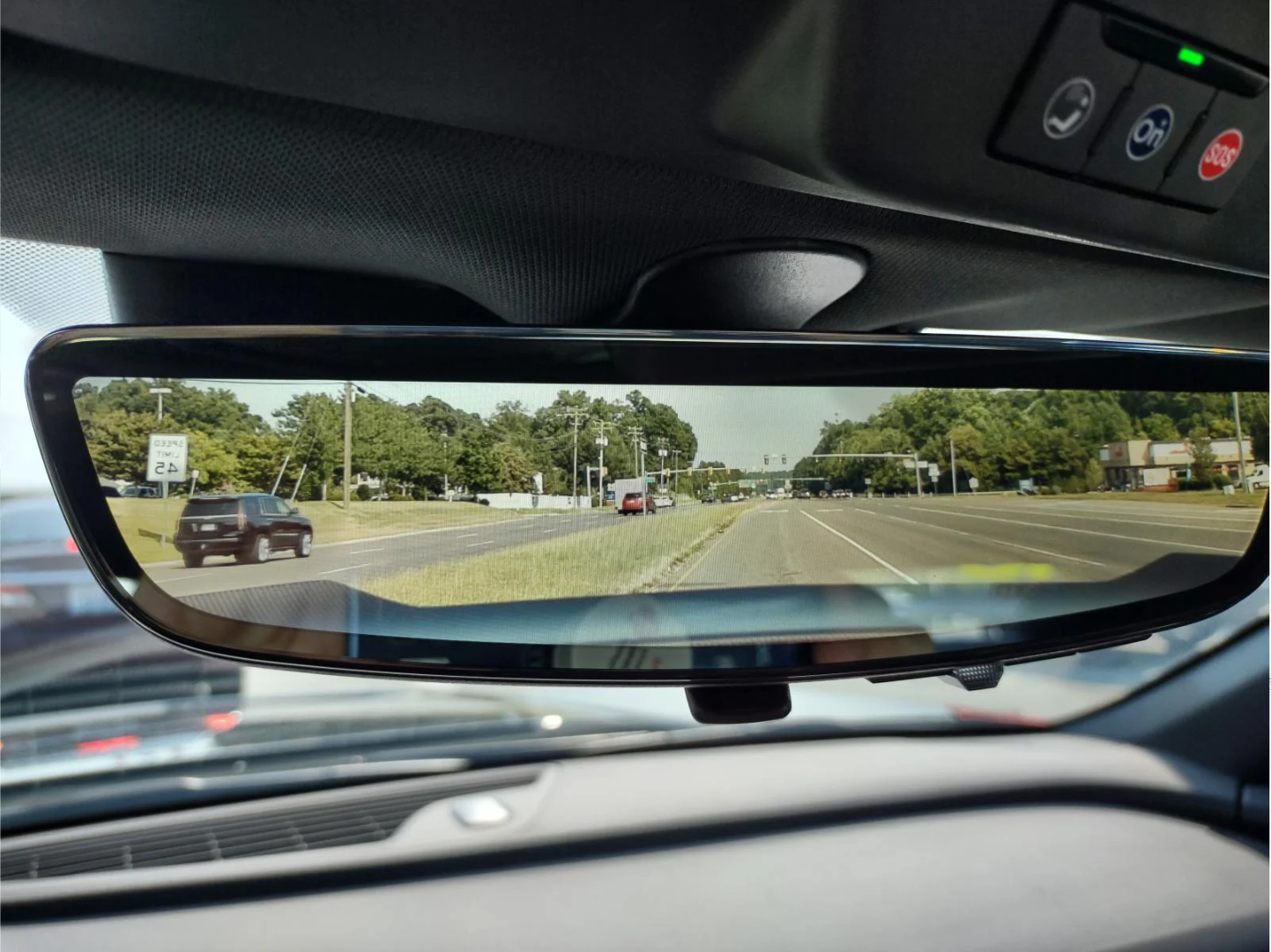

3. Install the Video Mirror:

   • Attach the new Liveview Video Mirror onto the mount where the old mirror was installed. Ensure it is securely fastened.
   • If the kit includes a new mounting bracket, install it according to the instructions.
   • Connect any necessary video cables and power wiring from the new mirror to the appropriate locations on the car. For example, video cables will connect to the camera, and the power wires will be connected to the car's electrical system.

4. Install the Camera:

   • The camera in the Liveview Video Mirror kit is typically mounted at the rear of the vehicle (either on the license plate frame or under the rear bumper).
   • Position the camera where it will have a clear view of the rear of the vehicle.
   • Drill holes (if necessary) and use screws to attach the camera to the vehicle.
   • Connect the video cable from the camera to the mirror unit inside the vehicle. You may need to run the cable through the vehicle's interior, typically along the ceiling or door frame.

5. Connect the Wiring:

   • Run the power wires for the mirror and camera. You may need to tap into the vehicle’s reverse light or another power source to activate the system when the car is in reverse.
   • Use wire connectors and electrical tape to ensure the connections are secure and insulated. The wiring should be routed neatly to avoid interference with other vehicle systems.

6. Test the System:

   • Before reassembling everything, reconnect the battery and turn on the vehicle.
   • Put the car in reverse to test whether the mirror activates and displays the video feed from the rear camera.
   • Check if the camera has a good view and that the video feed on the mirror is clear.

7. Final Adjustments:

   • If the video feed is working as expected, reassemble the trim around the rearview mirror and any other panels that were removed during installation.
   • Tuck any exposed wires out of sight to ensure a clean installation.

8. Secure and Test:

   • After completing the installation, do a final test by engaging reverse gear a few more times to ensure everything works consistently.
   • If necessary, adjust the angle of the video mirror or camera for the best visibility.

Important Tips:

• Check the Vehicle’s Manual: Some Cadillacs may have specific instructions or considerations for wiring or mirror installation, especially if they already have advanced driver-assistance systems (ADAS).
• Take Your Time: Be patient during the installation, especially if you need to run wires through the vehicle’s interior. Ensure all connections are secure and insulated.
• Professional Help: If you are not comfortable with the installation process or are unsure about wiring, it’s advisable to have a professional install the kit.

By following these steps, you should be able to successfully install the Liveview Video Mirror Kit in your Cadillac, enhancing your rearview visibility while driving.
